15A Aluminum Alloy rotary Slip Ring Electrical Connector 38.1mm 24 Circuits

Name: 15A Aluminum Alloy rotary Slip Ring Electrical Connector 381mm 24 Circuits
Brand: JINPAT
Price: 1 USD

China 15A Aluminum Alloy rotary Slip Ring Electrical Connector 38.1mm 24 Circuits wholesale

Brand Name : JINPAT

Model Number : LPT038-2415

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 pieces /Week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Operating Speed : 1~500RPM

Working Humidity : 60%RH

Voltage Rating : 240VAC/DC

Inner Diameter : 38.1mm

Contact Material : Precious metal

Circuits : 24*15A

Current(A) : 2A/5A/10A

Contact Now

15A Aluminum Alloy rotary Slip Ring Electrical Connector 38.1mm 24 Circuits

The LPT038-02E3 signal module slip ring provides an economical, readily available solution when a compact through-bore configuration is required. Signal module design can reduce the length of the slip ring and save installation room.The Ethernet through-bore slip ring is a rotating assembly used to transfer power, control circuits, or data (analog / digital) from stationary inlets to rotating outlets.

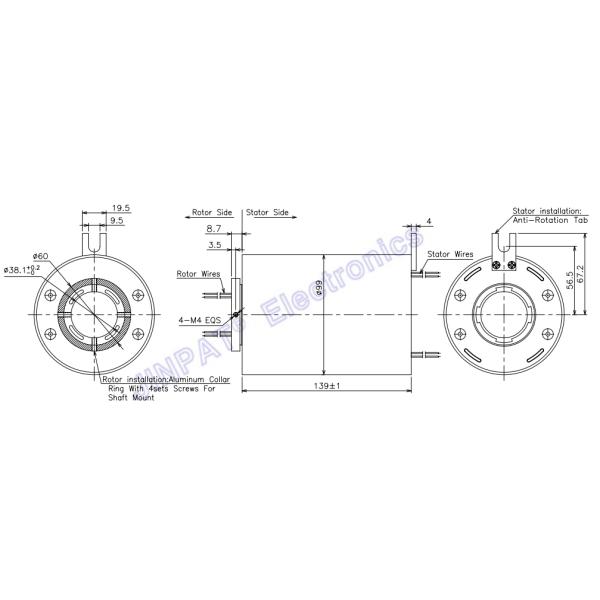

Dimension
15A Aluminum Alloy rotary Slip Ring Electrical Connector 38.1mm 24 Circuits

Compact Through Bore Slip Ring Options

Placement of custom circuitry directly onto the unit
Custom mechanical integration features
Addition of special components
The inclusion of coaxial and miniature data bus cables

Specification
Circuits	1-24 circuits
Operating Speed	0-300rpm
Working Temperature	-20℃~ +60℃
Working Humidity	60%RH
Electrical:
Voltage Rating	240VAC/DC
Current Rating	For various signals
Dielectric Strength	1000VAC@50Hz between each circuit
Insulation Resistance	500MΩ@ 500VDC
Electrical Noise	≤70mΩ (50 rpm)
Mechanical:
Contact Material	Precious metal
Lead Wire Size	/
Lead Wire Length	/
Housing Material	Aluminum alloy
Torque	/
Protection	/

The operating life of the unit depends upon temperature, rotation speed, and environment.
The operating life ≥50,000,000 runs ref.

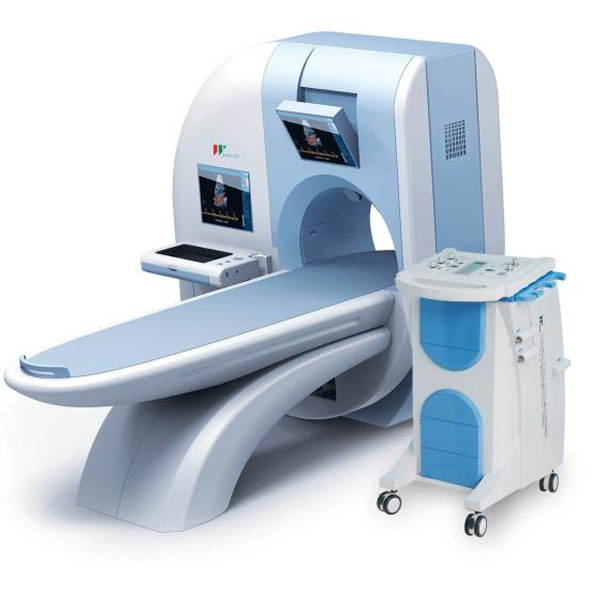

Application Picture

15A Aluminum Alloy rotary Slip Ring Electrical Connector 38.1mm 24 Circuits
